Italeri 1/35 scale S-100 Schnellboot
SchnellbooteBill
Visit this Community
Georgia, United States
Joined: July 22, 2010
KitMaker: 31 posts
Model Shipwrights: 30 posts
Posted: Wednesday, January 19, 2011 - 01:00 AM UTC
Pavel

That looks good

Keep up the good work
Robert75013
Visit this Community
Paris, France
Joined: March 08, 2009
KitMaker: 242 posts
Model Shipwrights: 240 posts
Posted: Wednesday, January 19, 2011 - 07:25 AM UTC
Hi Pawel,

... And that looks pretty good to me too!

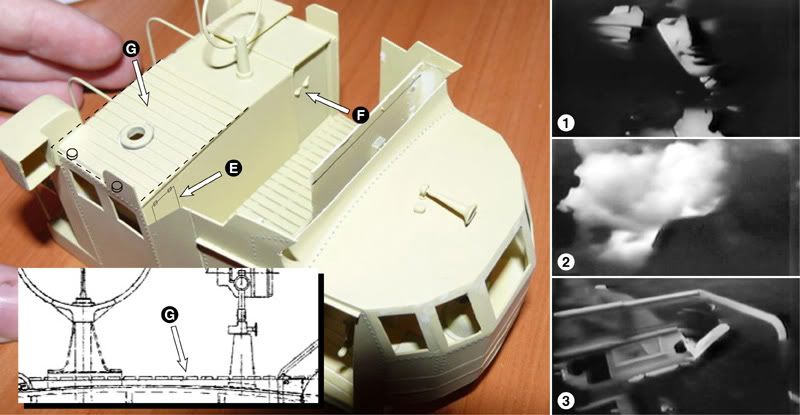

Now, always with your permission (since you seem to be off the starting blocks!), can I suggest you three little more improvements that will make your forecastle even better?

E- There was a trapdoor, located on the chartroom partition. That's what I guess Italeri intended to reproduce on its S-100, not exactly knowing what its purpose was. I have added three pictures from the propaganda movie "Asse Zur See" that you can find on the internet for you. 1) The chartroom man speaks thru that trapdoor to the captain standing on the bridge. 2) The captain now aware of the situation turns around forward. 3) He delivers his orders to the wheelhouse guys.

F- The question of two handles being on the door. Plans and photos only show on handle. This matter was also discussed with Brian Balkwill somewhere in this thread, and he kindly forwarded a picture of that door from S130, which demonstrated again, having two handles was a pure fantasy from Italeri...

G- I won't discuss about the length of the wood decking. We already did! But if you give a look at the bottom right original drawing Pawel, you'll notice that it was a board put down flat, not actually following the chartroom curved roof.

Now... I just hope you aren't feeling like killing me. I can still be of some help, you know!

Robert
Robert75013
Visit this Community
Paris, France
Joined: March 08, 2009
KitMaker: 242 posts
Model Shipwrights: 240 posts
Posted: Wednesday, January 19, 2011 - 07:59 AM UTC

Quoted Text

Off center by a hair.



One hair... one foot... Once of these days Bill, the USA will have to come to measure like civilized people do. Go metrics!

Robert
BALROG250
Visit this Community
Gdańsk, Poland
Joined: December 04, 2010
KitMaker: 71 posts
Model Shipwrights: 71 posts
Posted: Wednesday, January 19, 2011 - 08:06 AM UTC
E- Platform I will not upcycle

F- One handles being on the door it has been cut off

G- You have a plan or a photo of this flap?
SchnellbooteBill
Visit this Community
Georgia, United States
Joined: July 22, 2010
KitMaker: 31 posts
Model Shipwrights: 30 posts
Posted: Wednesday, January 19, 2011 - 08:16 AM UTC
Robert
How much fun is the metric system?1 by 1 = 1
now 1 by 64 thats fun

next you will want us (USA) to spell words right

We may see the Sun thhis week so there
Bill
BALROG250
Visit this Community
Gdańsk, Poland
Joined: December 04, 2010
KitMaker: 71 posts
Model Shipwrights: 71 posts
Posted: Wednesday, January 19, 2011 - 08:20 AM UTC
Bill, Robert is bored, and therefore to cling
SchnellbooteBill
Visit this Community
Georgia, United States
Joined: July 22, 2010
KitMaker: 31 posts
Model Shipwrights: 30 posts
Posted: Wednesday, January 19, 2011 - 08:50 AM UTC
Pawel

yep you are right what he needs is a good shot in the you know where.

Paawel is your S 38 type R/C?

Do you have a boot number? Mine is going to be the S 81 later I would like a
S 116

Take care maybe Robert is in bed by now

Bill
BALROG250
Visit this Community
Gdańsk, Poland
Joined: December 04, 2010
KitMaker: 71 posts
Model Shipwrights: 71 posts
Posted: Wednesday, January 19, 2011 - 09:31 AM UTC
Yes, my S-38 is the RC
Here you have my relationship

http://modelshipwrights.kitmaker.net/modules.php?op=modload&name=SquawkBox&file=index&req=viewtopic&topic_id=168081&page=1

Number of boat it page S-80


Pawel

Robert75013
Visit this Community
Paris, France
Joined: March 08, 2009
KitMaker: 242 posts
Model Shipwrights: 240 posts
Posted: Wednesday, January 19, 2011 - 11:02 AM UTC
Oh God, now am I in trouble!

A Georgian having problems with metrics and a Pole with our Roman alphabet! I know at least one Pole in Rome who'd stand up his grave. Well, I'd maybe start thinking growing strawberries... or move to Mars!

Ok, keep cool Robert, take a long breath. So, let me put myself together... what were we talking about? O yeah, go it. Pawel:
E- concerned trapdoor... not wood decking
G- concerned wood decking.

And to answer your question Pawel, yes there's a drawing of the trapdoor. It's on the German plans. Yours, posted yesterday show the front of the open bridge, another one shows its back. I know at least two German propaganda/weekly news programs that show the trapdoor. Sorry, if I don't feel right now like viewing all the videos to spot it, you'll have to take my word.

And Bill, nope sir, I'll never go ask an American to spell words the English way. Don't forget, I worked for over 30 years for the In'l. Herald Tribune!

Good nite gentlemen!

Robert
Robert75013
Visit this Community
Paris, France
Joined: March 08, 2009
KitMaker: 242 posts
Model Shipwrights: 240 posts
Posted: Sunday, January 23, 2011 - 12:09 AM UTC
Our S-38 intermission being made, let's get back to our S-100 thread.

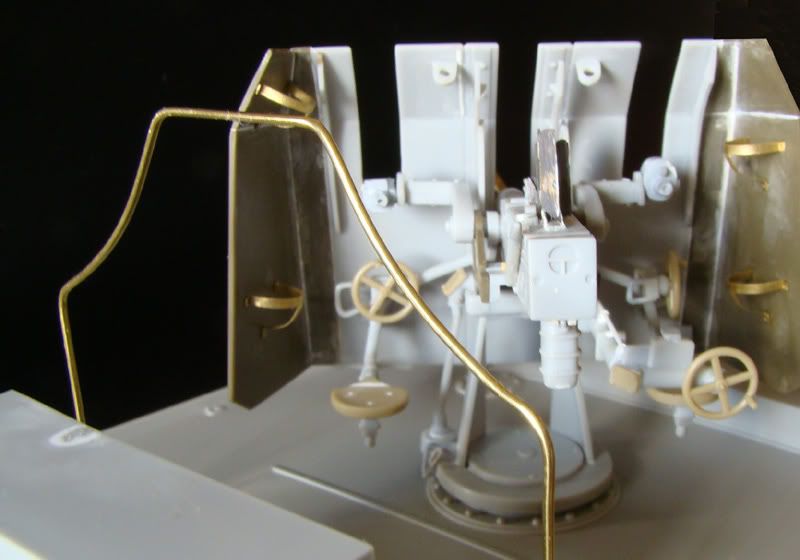

"Operation Corrections" with the modification of the last depression rail fitted behing our 3.7cm flak is now over.

Gentlemen, drinks are on me!

Robert

Plans for the Schnellbooy types S-100 and S38? It's here: http://rpalmacci.free.fr
the-Rocketman
Visit this Community
Zuid-Holland, Netherlands
Joined: December 24, 2009
KitMaker: 69 posts
Model Shipwrights: 67 posts
Posted: Sunday, January 23, 2011 - 06:05 AM UTC

Quoted Text

Typ S-100

FuMB-28 Naxos





Pavel

Nice looking Naxos got a question about the hood.

How did you create this perspex hood ??

And about the lokation of Naxos and other radar information take a look around on the following Internet address

http://www.cdvandt.org/

There is a lot to find on German radio material and radar.

Greetings Bert
xrz100
Visit this Community
Berlin, Germany
Joined: May 28, 2010
KitMaker: 188 posts
Model Shipwrights: 181 posts
Posted: Sunday, January 23, 2011 - 06:22 AM UTC
Gentlemen

Here is the first testrun of the Torpedo I:

http://www.youtube.com/watch?v=nq22v4y_7X0

The torpedo is runs by a 7 mm DC engine a 10 m Propeller and a AAA battery. The torpedo lies well balanced in the water, but the speed is not satisfying. The variables we can change her are 1) using 2 AAA batteries, 2) using a bigger Propeller, 3) increase the angle on the propeller wings.

Well, I think the next torpedo version will include 2 AAA batteries, a bigger propeller and a stronger angle of the wings.

But I will be in Frankfurt for the next three week, thus it will take some time until Torpedo II will come to the movies in the theatre next to you.....................


Christian
SchnellbooteBill
Visit this Community
Georgia, United States
Joined: July 22, 2010
KitMaker: 31 posts
Model Shipwrights: 30 posts
Posted: Sunday, January 23, 2011 - 10:12 AM UTC
Christian
Do you have a build log on the your Torpedoe?
I have one from Mike Dory but he uses air to power his,I like your batteries power better.

Thanks for the you tube also

Bill
xrz100
Visit this Community
Berlin, Germany
Joined: May 28, 2010
KitMaker: 188 posts
Model Shipwrights: 181 posts
Posted: Sunday, January 23, 2011 - 10:07 PM UTC
Hello Bill,

I document all my construction, success and failures within the following German forum:

http://www.schiffsmodell.net/showthread.php?t=35871&highlight=boot+6ten+Schnellbootflotille

The description is in German, but most pictures tell the story, the components you need etc. anyway, I am just a personal note away

Another captain - Ole - provides his description in the same forum under this address:

http://www.schiffsmodell.net/showthread.php?t=31784

hope this helps, if I can be of assistance or help, just let me know

Christian
Robert75013
Visit this Community
Paris, France
Joined: March 08, 2009
KitMaker: 242 posts
Model Shipwrights: 240 posts
Posted: Sunday, January 23, 2011 - 10:26 PM UTC
Thank you for the link, Bert. I found it so much time ago that I couldn't track it back!

Beautiful job on your "Torpedo Mark I," Christian. I can hardly wait to see the devastating Mark II in action.
And I agree with Bill; for having added so much electronics (re: motorizing the guns, deep charges, etc.), you'd create your own thread explaining step-by-step material you used and how you solved these challenges. That would surely attract more than one modeler wishing to RC any kind of torpedo boat.
SchnellbooteBill
Visit this Community
Georgia, United States
Joined: July 22, 2010
KitMaker: 31 posts
Model Shipwrights: 30 posts
Posted: Monday, January 24, 2011 - 12:13 AM UTC
Christian
Thanks I will check out your web page later today.

Again thanks

Robert
I have 1 more frame to go hope to plank the sides this weekend

Bill
xrz100
Visit this Community
Berlin, Germany
Joined: May 28, 2010
KitMaker: 188 posts
Model Shipwrights: 181 posts
Posted: Monday, January 24, 2011 - 12:35 AM UTC
Robert, Bill, thanks for your feedback,

I will think about it

regards

Christian
jojo61
Visit this Community
France
Joined: January 21, 2011
KitMaker: 16 posts
Model Shipwrights: 15 posts
Posted: Tuesday, January 25, 2011 - 01:28 AM UTC
Gentlemen, good afternoon...
Excuses-me for my scholar Inglish...
I am french, you anderstand...

Are-you interested by my presence with yoou ?

Y am trying to built an E-boot whitch was in Cherbourg in april 1944.
9me flotille. S-145 or 150...

I lookeed with interest all your pages, and i y am looking for all can find on this subject...



Now y am workinf on the flak 37 MM.

Thanks for Alin, with all his pictures !...
It will be easier to imagine what it was !...


Regards





Jol

the-Rocketman
Visit this Community
Zuid-Holland, Netherlands
Joined: December 24, 2009
KitMaker: 69 posts
Model Shipwrights: 67 posts
Posted: Tuesday, January 25, 2011 - 06:24 AM UTC
Joel,

Welcome to the S-100 group from Holland

Bert

jojo61
Visit this Community
France
Joined: January 21, 2011
KitMaker: 16 posts
Model Shipwrights: 15 posts
Posted: Tuesday, January 25, 2011 - 09:59 PM UTC
Thanks Bert.

My first question is on the M42.



On the schnellboot like the S-145 or 150, how whas this gun :
With or without external shields like more recent boats ?

The slots where rectangular or circular ?

When the boat was in harbour, are the shields open or closed ?

Have you answers for me ?




Best regards

Jol




the-Rocketman
Visit this Community
Zuid-Holland, Netherlands
Joined: December 24, 2009
KitMaker: 69 posts
Model Shipwrights: 67 posts
Posted: Wednesday, January 26, 2011 - 08:08 AM UTC
http://www.lostbulgaria.com/?cat=246&paged=3

http://www.lostbulgaria.com/?p=1969

http://www.lostbulgaria.com/?p=1971

Pictures from a Bulgarian site
the-Rocketman
Visit this Community
Zuid-Holland, Netherlands
Joined: December 24, 2009
KitMaker: 69 posts
Model Shipwrights: 67 posts
Posted: Wednesday, January 26, 2011 - 08:53 AM UTC
http://www.lostbulgaria.com/?p=1952

http://www.lostbulgaria.com/?p=1950

http://www.lostbulgaria.com/?p=1946

Second set of pictures from this Bulgarian photoarchive

Hope the give you some info

Greetings

Bert
Gotrek58
Visit this Community
Nordrhein-Westfalen, Germany
Joined: January 11, 2009
KitMaker: 652 posts
Model Shipwrights: 381 posts
Posted: Thursday, January 27, 2011 - 07:50 AM UTC
Hi Joel,
welcome to this S-100 group from Germany!
Try to find pics concerning S-145 and/or S-150; I will do too.
I believe, that the wider shields for the 3,7cm Flak M42 on S-204 and S-205 were rebuilt late 1944. For this AA-gun was also used on u-boats the folding mechanism was evident while diving to reduce the hydrodymanic resistance. and that wasn't important on s-boats!

Michael
jojo61
Visit this Community
France
Joined: January 21, 2011
KitMaker: 16 posts
Model Shipwrights: 15 posts
Posted: Thursday, January 27, 2011 - 07:28 PM UTC
Thanks for your reply and future pictures...

I think so too. I shall built my AA normally, in position of firing.

Regards


Jol


C[ ]
jojo61
Visit this Community
France
Joined: January 21, 2011
KitMaker: 16 posts
Model Shipwrights: 15 posts
Posted: Saturday, January 29, 2011 - 01:12 AM UTC
I have another question about the color of the insigna of the 9th flotilla.
White or black ?






The only picture is :



Regards



Jol
